Features & benefits
Quality Air Flow

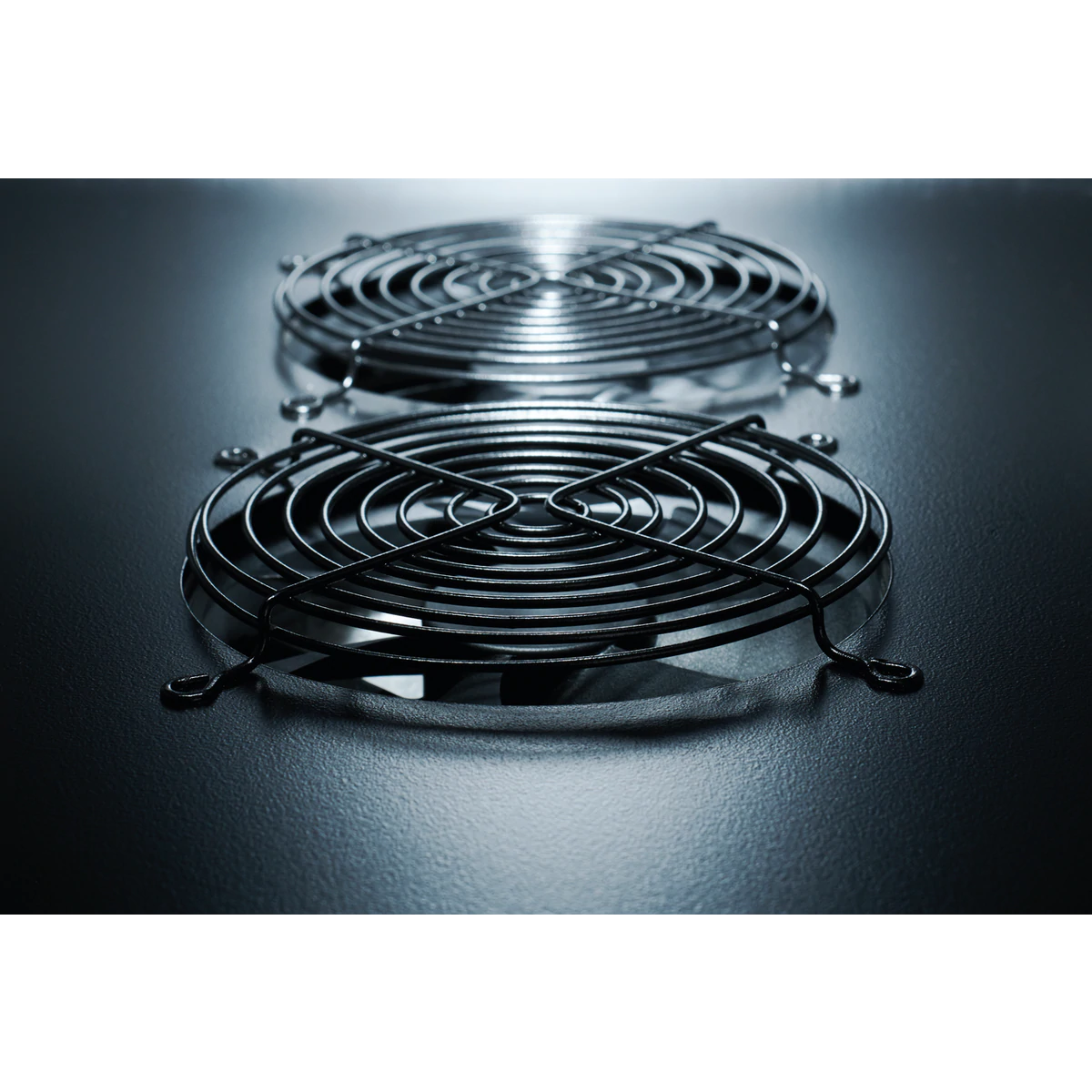

Our cabinets include internal and external fans to ensure there is a slow reticulated air flow throughout the cabinet
Two Separate Chambers
Ideal for keeping both reds and whites at perfect drinking temperatures. Set one side compartment at 6 – 8 for white and Champagne, and the other side at 16 – 18 for reds. Alternatively, a compartment can be set at 12 – 14 for cellaring.
Stable Temperature
Our wine cabinets maintain a stable temperature to keep your wine in perfect cellaring conditions. This is thanks to the Triple Glazed, UV treated, insulated side panels and interactions between a compressor and thermostat.
Humidity above 50%
Our wine cabinets incorporate a Thermal Recycling Pump that ensures adequate humidity levels are maintained. The Thermal Recycling Pump works by heating condensed water, which is then introduced as humid air within the cabinet.
UV Protected Dark Storage Area
UV rays negatively impact the quality of your wine. Our cabinets eliminate this threat by incorporating UV treated tinted glass doors or solid doors, dark interiors and dimmed internal LED lights.
Vibration Reduction System
To protect the storage life and quality of your wine, our cabinets have been designed to create a vibration proof environment by including an externally housed compressor, rubber shock absorbers and vibration absorbing wooden shelves.
Quality Air Flow
Our cabinets include internal and external fans to ensure there is a slow reticulated air flow throughout the cabinet
Two Separate Chambers
Ideal for keeping both reds and whites at perfect drinking temperatures. Set one side compartment at 6 – 8 for white and Champagne, and the other side at 16 – 18 for reds. Alternatively, a compartment can be set at 12 – 14 for cellaring.
Stable Temperature
Our wine cabinets maintain a stable temperature to keep your wine in perfect cellaring conditions. This is thanks to the Triple Glazed, UV treated, insulated side panels and interactions between a compressor and thermostat.
Humidity above 50%
Our wine cabinets incorporate a Thermal Recycling Pump that ensures adequate humidity levels are maintained. The Thermal Recycling Pump works by heating condensed water, which is then introduced as humid air within the cabinet.
UV Protected Dark Storage Area
UV rays negatively impact the quality of your wine. Our cabinets eliminate this threat by incorporating UV treated tinted glass doors or solid doors, dark interiors and dimmed internal LED lights.
Vibration Reduction System
To protect the storage life and quality of your wine, our cabinets have been designed to create a vibration proof environment by including an externally housed compressor, rubber shock absorbers and vibration absorbing wooden shelves.
Quality Air Flow
Our cabinets include internal and external fans to ensure there is a slow reticulated air flow throughout the cabinet

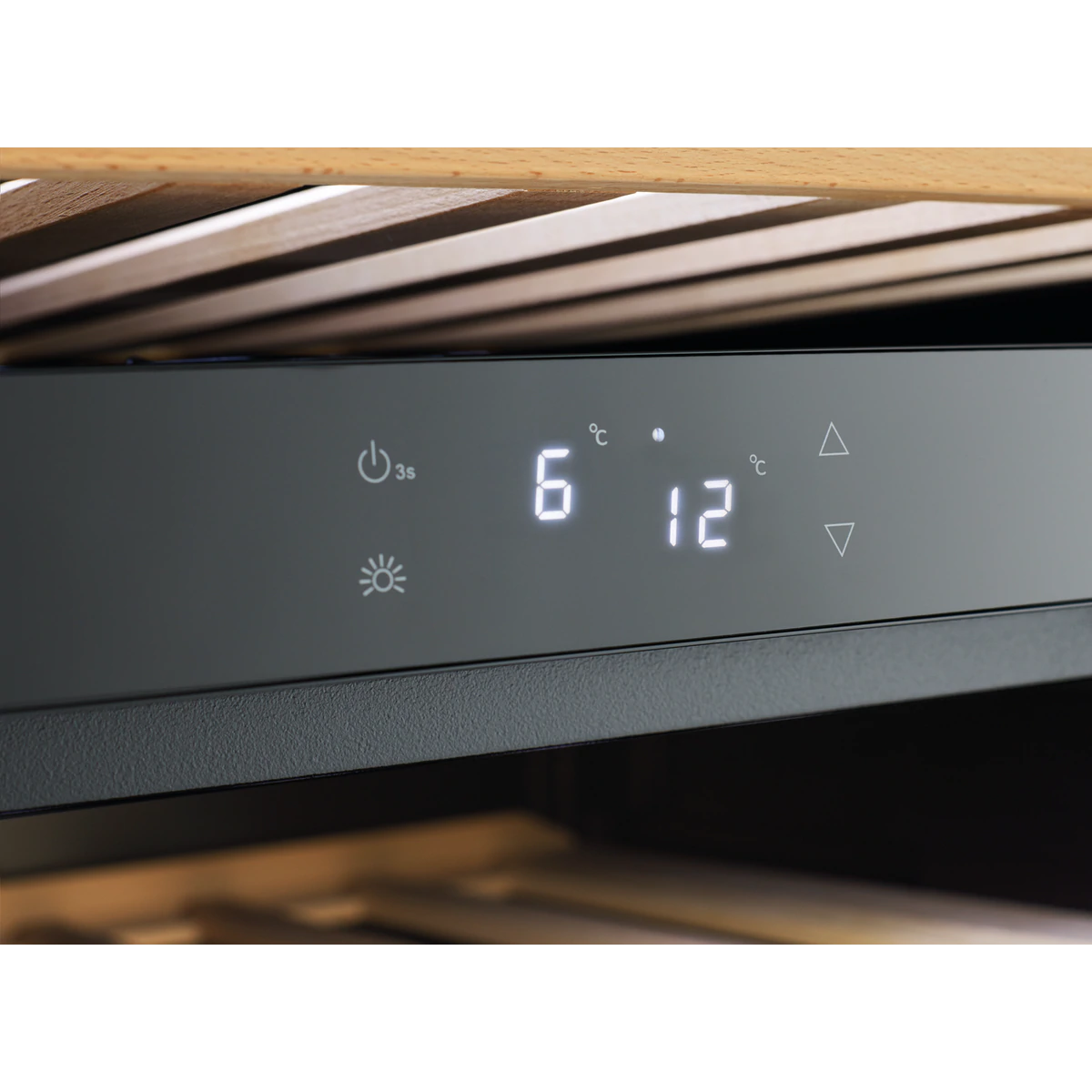

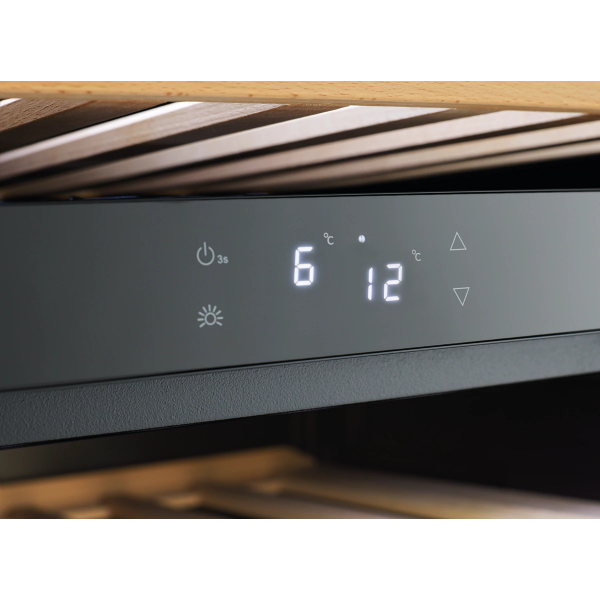

LED digital display panel
Security lock
Energy Efficient R600a Gas
Winter function for cold climates
Specifications
ENERGY
- Electricity Consumption (kWh/Day)0.542
FUNCTIONS
- Main FunctionServe Reds & Whites
- Alternate FunctionCellar AND Serve Whites or Reds
- No of Zones2
- Temperature Range Zone 1 (deg)6 – 12
- Temperature Range Zone 2 (deg)12 – 18
- Temperature Range Zone 3 (deg)N/A
- LockYes
- AlarmNone
- Display PanelLED Digital Display
- Internal HeaterYes
- Door ConstructionTriple Glazed, UV treated
INSTALLATION
- HingeRight
- Installation TypeSlot-in
- Height (mm)820
- Width (mm)595
- Depth (mm)561
- Joinery cut out dimension- minimum h850
- Joinery cut out dimension- minimum w615
- Joinery cut out dimension- minimum d555
- Air space above cabinet (mm)30
- Air space at sides (mm)20
- Rear Spacer (mm)30
- Ambient Temperature (deg)5-43
OTHER
- DomesticWarrantySG1
- WarrantyExtensionsSG+ 12 mths for VC members
- RangeNameNoir
- ZonesDenominationDual-Zone
- UVTreatedYes
- CutOffThermostatYes
- AirFilterNo
- AdjustableShelvesYes
- SlidingShelvesTypeStandard glide rails, partial extension
- BodyFinishBlack
- ReversibleYes by customer; charges apply for service
- OppositeHingingPCN/A
- Product InstallationBuilt-In or Freestanding
- RefrigerantR600a
STORAGEANDSHELVING
- Easy Capacity (Bottles)44
- Max Capacity (Bottles)44
- Number of Shelves4
- Shelving MaterialWood
- Shelving Type4 Full, 1 Half
VISUAL
- LightingWhite LED
- LightPositionTop & Mid
- HandleRecessed
- Door TypeGlass Door
- FinishBorderless Black Glass
